ALL PRODUCTS
|
|
1. DK-3000 [2006年9月22日]
 | | | Brand：Purelies/Amplifier/DK Series |
Distortion Limit Main Output：200W×2+160W×1/8Ω
HF/LF Increase/decrease：±12dB
Range Of Tone Adjusting：100Hz/Grade（11 Grade）
Separability：≥-60dB
S/N：≥80dB
Frequency Response：20Hz-20KHz（±1dB）
Mid-Point Voltage：≤30mv
Overload Protection：3CH
Noise Voltage：≤3mv
Left/right Balance：≤0.5dB
Min Input Sensitivity：150mv
MIC LF Tone：±2.5dB
MIC HF Tone：±6dB
MIC Frequency Response：20Hz-20KHz（±0.5dB）
MIC Noise Voltage：≤5mv
MIC Min Input Sensitivity：15mv
Packing Dimension：210×505×430mm
Net Weight：14.5Kg
Gross Weight：16Kg |
|
2. C-820 [2006年9月22日]
 | | | Brand：Purelies/Speaker/C Series |
Frequency Response：50Hz-18KHz
RMS Power：160W
Peak Power：320W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：8″×2+3×1″Sphere
Sensitivity：97dB/W/M
Max SPL：119Db
Hang System：2 Flying Point
Dimension：275×510×305mm
Net Weight：23Kg/Pair
Gross Weight：23.9Kg/Pair |
|
3. C-800 [2006年9月22日]
 | | | Brand：Purelies/Speaker/C Series |
Frequency Response：50Hz-18KHz
RMS Power：160W
Peak Power：320W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：8″×2+3×1″Sphere
Sensitivity：97dB/W/M
Max SPL：119Db
Hang System：2 Flying Point
Dimension：275×510×305mm
Net Weight：23Kg/Pair
Gross Weight：23.9Kg/Pair |
|
4. C-600 [2006年9月22日]
 | | | Brand：Purelies/Speaker/C Series |
Frequency Response：60Hz-18KHz
RMS Power：120W
Peak Power：240W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：6″×2+1″Sphere
Sensitivity：95dB/W/M
Max SPL：116dB
Dimension：210×440×265mm
Hang System：2 Flying Point
Net Weight：18Kg/Pair
Gross Weight：18.5Kg/Pair |
|
5. DK-3000 [2006年9月22日]
 | | | Brand：J-Bebo/Amplifier/DK Series |
Distortion Limit Main Output：200W×2+160W×1/8Ω
HF/LF Increase/decrease：±12dB
Range Of Tone Adjusting：100Hz/Grade（11 Grade）
Separability：≥-60dB
S/N：≥80dB
Frequency Response：20Hz-20KHz（±1dB）
Mid-Point Voltage：≤30mv
Overload Protection：3CH
Noise Voltage：≤3mv
Left/right Balance：≤0.5dB
Min Input Sensitivity：150mv
MIC LF Tone：±2.5dB
MIC HF Tone：±6dB
MIC Frequency Response：20Hz-20KHz（±0.5dB）
MIC Noise Voltage：≤5mv
MIC Min Input Sensitivity：15mv
Packing Dimension：210×505×430mm
Net Weight：14.5Kg
Gross Weight：16Kg |
|
6. C-820 [2006年9月22日]
 | | | Brand：J-Bebo/Speaker/C Series |
Frequency Response：50Hz-18KHz
RMS Power：160W
Peak Power：320W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：8″×2+3×1″Sphere
Sensitivity：97dB/W/M
Max SPL：119Db
Hang System：2 Flying Point
Dimension：275×510×305mm
Net Weight：23Kg/Pair
Gross Weight：23.9Kg/Pair |
|
7. C-800 [2006年9月22日]
 | | | Brand：J-Bebo/Speaker/C Series |
Frequency Response：50Hz-18KHz
RMS Power：160W
Peak Power：320W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：8″×2+3×1″Sphere
Sensitivity：97dB/W/M
Max SPL：119Db
Hang System：2 Flying Point
Dimension：275×510×305mm
Net Weight：23Kg/Pair
Gross Weight：23.9Kg/Pair |
|
8. C-600 [2006年9月22日]
 | | | Brand：J-Bebo/Speaker/C Series |
Frequency Response：60Hz-18KHz
RMS Power：120W
Peak Power：240W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：6″×2+1″Sphere
Sensitivity：95dB/W/M
Max SPL：116dB
Dimension：210×440×265mm
Hang System：2 Flying Point
Net Weight：18Kg/Pair
Gross Weight：18.5Kg/Pair |
|
9. DK-3000 [2006年9月21日]
 | | | Brand：Harman/Amplifier/DK Series |
Distortion Limit Main Output：200W×2+160W×1/8Ω
HF/LF Increase/decrease：±12dB
Range Of Tone Adjusting：100Hz/Grade（11 Grade）
Separability：≥-60dB
S/N：≥80dB
Frequency Response：20Hz-20KHz（±1dB）
Mid-Point Voltage：≤30mv
Overload Protection：3CH
Noise Voltage：≤3mv
Left/right Balance：≤0.5dB
Min Input Sensitivity：150mv
MIC LF Tone：±2.5dB
MIC HF Tone：±6dB
MIC Frequency Response：20Hz-20KHz（±0.5dB）
MIC Noise Voltage：≤5mv
MIC Min Input Sensitivity：15mv
Packing Dimension：210×505×430mm
Net Weight：14.5Kg
Gross Weight：16Kg |
|

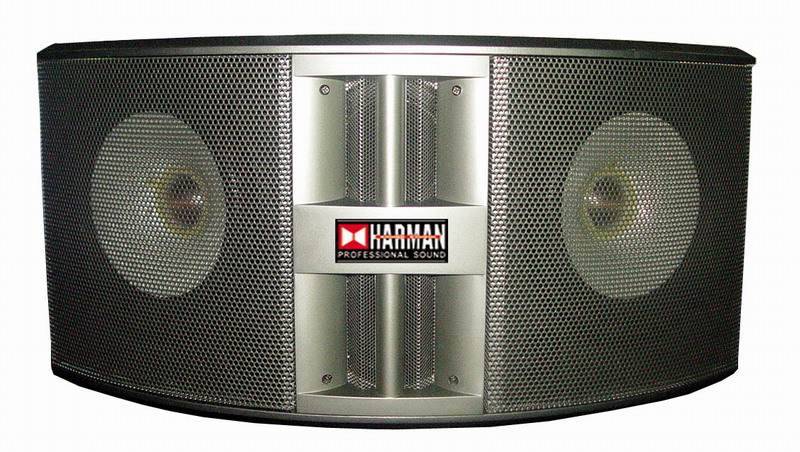

10. C-820 [2006年9月21日]
 | | | Brand：Harman/Speaker/C Series |
Frequency Response：50Hz-18KHz
RMS Power：160W
Peak Power：320W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：8″×2+3×1″Sphere
Sensitivity：97dB/W/M
Max SPL：119Db
Hang System：2 Flying Point
Dimension：275×510×305mm
Net Weight：23Kg/Pair
Gross Weight：23.9Kg/Pair |
|

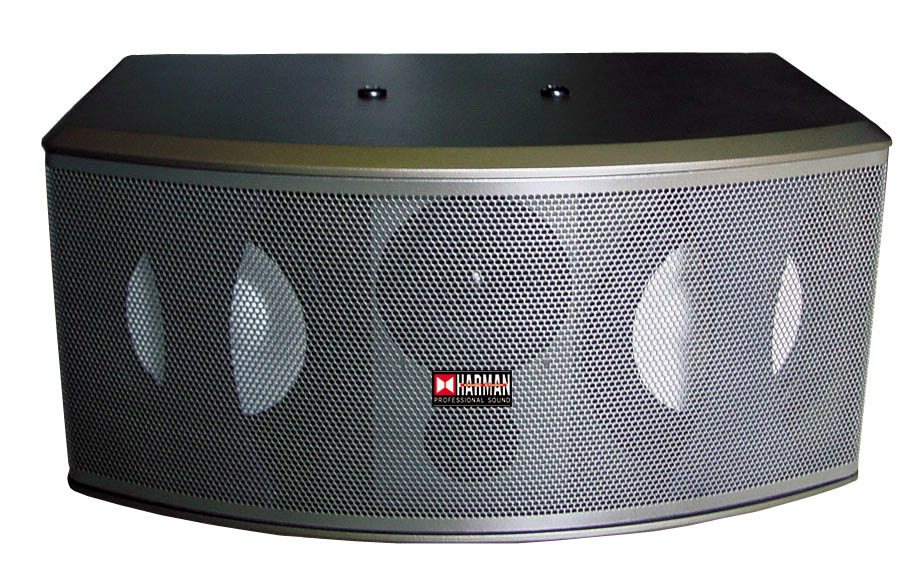

11. C-800 [2006年9月21日]
 | | | Brand：Harman/Speaker/C Series |
Frequency Response：50Hz-18KHz
RMS Power：160W
Peak Power：320W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：8″×2+3×1″Sphere
Sensitivity：97dB/W/M
Max SPL：119Db
Hang System：2 Flying Point
Dimension：275×510×305mm
Net Weight：23Kg/Pair
Gross Weight：23.9Kg/Pair |
|
12. C-600 [2006年9月21日]
 | | | Brand：Harman/Speaker/C Series |
Frequency Response：60Hz-18KHz
RMS Power：120W
Peak Power：240W
Nominal Impedance：4Ω
Coverage Angle：100°H×100°V
Component：6″×2+1″Sphere
Sensitivity：95dB/W/M
Max SPL：116dB
Dimension：210×440×265mm
Hang System：2 Flying Point
Net Weight：18Kg/Pair
Gross Weight：18.5Kg/Pair |
|
13. CS-2000 [2006年9月21日]
 | | | Brand：Kidrock/Amplifier/CS Series |
Power Output（Max）8Ω：700W
Power Output（Max）4Ω：1200W
Bridge 8Ω：2100W
Input Impedance：20KΩ-10KΩ
Frequency Response：20Hz-20KHz
THD：≤0.5%
S/N：≥95dB
IMD：≤0.05%
Damping Factor：＞400
DC Protection：Have
Temperature Protection：Relay Breaks at 95℃
Input Sensitivity：1V
Net Weight：27Kg
Dimension（HWD）：130×482×450mm
※Use individual channel to improve the excellent separability of sound.
※Suitable for a wide variety of environment and not to be any restricted, such as stadium, church, opera house, classroom, theater, amusement park, broadcasting, television and industry field etc.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start when TURN ON and TURN OFF.
※Unique and complete protection against shorted, overload, DC, soft start and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
14. CS-1500 [2006年9月21日]
 | | | Brand：Kidrock/Amplifier/CS Series |
Power Output（Max）8Ω：500W
Power Output（Max）4Ω：800W
Bridge 8Ω：1500W
Input Impedance：20KΩ-10KΩ
Frequency Response：20Hz-20KHz
THD：≤0.5%
S/N：≥95dB
IMD：≤0.05%
Damping Factor：＞400
DC Protection：Have
Temperature Protection：Relay Breaks at 95℃
Input Sensitivity：1V
Net Weight：27Kg
Dimension（HWD）：130×482×450mm
※Use individual channel to improve the excellent separability of sound.
※Suitable for a wide variety of environment and not to be any restricted, such as stadium, church, opera house, classroom, theater, amusement park, broadcasting, television and industry field etc.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start when TURN ON and TURN OFF.
※Unique and complete protection against shorted, overload, DC, soft start and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
15. CS-1000 [2006年9月21日]
 | | | Brand：Kidrock/Amplifier/CS Series |
Power Output（Max）8Ω：400W
Power Output（Max）4Ω：600W
Bridge 8Ω：1200W
Input Impedance：20KΩ-10KΩ
Frequency Response：20Hz-20KHz
THD：≤0.5%
S/N：≥95dB
IMD：≤0.05%
Damping Factor：＞400
DC Protection：Have
Temperature Protection：Relay Breaks at 95℃
Input Sensitivity：1V
Net Weight：27Kg
Dimension（HWD）：130×482×450mm
※Use individual channel to improve the excellent separability of sound.
※Suitable for a wide variety of environment and not to be any restricted, such as stadium, church, opera house, classroom, theater, amusement park, broadcasting, television and industry field etc.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start when TURN ON and TURN OFF.
※Unique and complete protection against shorted, overload, DC, soft start and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
16. DS-1000 [2007年1月31日]
 | | | Brand：Kidrock/Amplifier/DS Digital Amplifier Series |
Power Output（Max）8Ω：1100W×2
Power Output（Max）4Ω：1800W×2
Power Output（Max）2Ω：3400W×2
Input Impedance：20KΩ-10KΩ
Frequency Response：10Hz-40KHz
THD：≤0.1%
S/N：≥105dB
IMD：≤0.2%
Damping Factor：＞600
DC Protection：Have
Temperature Protection：Have
Input Sensitivity：1.1V
Net Weight：10Kg
Dimension（HWD）：46×500×480mm
※Low mains consumption and high performance and compact size and light weight
※Suitable for a wide variety of environment , such as used in highest level of concert touring, stadium sound, large club, stage, theater, auditorium and other demanding installations around the globe.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start
※Unique and complete protection against currents in-rush, DC, shorted, open, close and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
17. DS-900 [2007年1月31日]
 | | | Brand：Kidrock/Amplifier/DS Digital Amplifier Series |
Power Output（Max）8Ω：1000W×2
Power Output（Max）4Ω：1650W×2
Power Output（Max）2Ω：3200W×2
Input Impedance：20KΩ-10KΩ
Frequency Response：10Hz-40KHz
THD：≤0.1%
S/N：≥105dB
IMD：≤0.2%
Damping Factor：＞600
DC Protection：Have
Temperature Protection：Have
Input Sensitivity：1.1V
Net Weight：10Kg
Dimension（HWD）：46×500×480mm
※Low mains consumption and high performance and compact size and light weight
※Suitable for a wide variety of environment , such as used in highest level of concert touring, stadium sound, large club, stage, theater, auditorium and other demanding installations around the globe.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start
※Unique and complete protection against currents in-rush, DC, shorted, open, close and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
18. DS-800 [2007年1月31日]
 | | | Brand：Kidrock/Amplifier/DS Digital Amplifier Series |
Power Output（Max）8Ω：900W×2
Power Output（Max）4Ω：1500W×2
Power Output（Max）2Ω：2800W×2
Input Impedance：20KΩ-10KΩ
Frequency Response：10Hz-40KHz
THD：≤0.1%
S/N：≥105dB
IMD：≤0.2%
Damping Factor：＞600
DC Protection：Have
Temperature Protection：Have
Input Sensitivity：1.1V
Net Weight：10Kg
Dimension（HWD）：46×500×480mm
※Low mains consumption and high performance and compact size and light weight
※Suitable for a wide variety of environment , such as used in highest level of concert touring, stadium sound, large club, stage, theater, auditorium and other demanding installations around the globe.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start
※Unique and complete protection against currents in-rush, DC, shorted, open, close and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
19. DA-1000 [2006年10月28日]
 | | | Brand：Kidrock/Amplifier/DA Digital Amplifier Series |
Power Output（Max）8Ω：1100W
Power Output（Max）4Ω：1800W
Power Output（Max）2Ω：3400W
Input Impedance：20KΩ-10KΩ
Frequency Response：10Hz-40KHz
THD：≤0.1%
S/N：≥105dB
IMD：≤0.2%
Damping Factor：＞600
DC Protection：Have
Temperature Protection：Have
Input Sensitivity：1.1V
Net Weight：10Kg
Dimension（HWD）：46×500×480mm
※Low mains consumption and high performance and compact size and light weight
※Suitable for a wide variety of environment , such as used in highest level of concert touring, stadium sound, large club, stage, theater, auditorium and other demanding installations around the globe.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start
※Unique and complete protection against currents in-rush, DC, shorted, open, close and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
20. DA-900 [2006年10月28日]
 | | | Brand：Kidrock/Amplifier/DA Digital Amplifier Series |
Power Output（Max）8Ω：1000W
Power Output（Max）4Ω：1650W
Power Output（Max）2Ω：3200W
Input Impedance：20KΩ-10KΩ
Frequency Response：10Hz-40KHz
THD：≤0.1%
S/N：≥105dB
IMD：≤0.2%
Damping Factor：＞600
DC Protection：Have
Temperature Protection：Have
Input Sensitivity：1.1V
Net Weight：10Kg
Dimension（HWD）：46×500×480mm
※Low mains consumption and high performance and compact size and light weight
※Suitable for a wide variety of environment , such as used in highest level of concert touring, stadium sound, large club, stage, theater, auditorium and other demanding installations around the globe.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start
※Unique and complete protection against currents in-rush, DC, shorted, open, close and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
|
| |
|
|
|
|
