| HARMAN |
 |
| J-BEBO |
 |
| PURELIES |
 |
| KIDROCK |
| |
|
 |
|
|
| |
ALL PRODUCTS
|
|
1. H-3000 [2006年9月12日]
 | | | Brand：Harman/Signal Processors/Effect Equipment |
Shipping Size：44mm×482.6mm×190.5mm
Net Weight：3Kg |
|
2. FBQ-2031 [2006年9月23日]
 | | | Brand：Harman/Signal Processors/Equalizer |
Shipping Size：620×300×110mm
Net Weight：2.5Kg
※ Professional 31-band stereo Graphic Equalizer for both live and studio applocations;
※ Revolutionary feedback Detection System instantly reveals critial frequencies and can also be used as Audio analyzer;
※ Dedicated mono subwoofer output with adjustable crossover frequency;
※ Additional sweepable high and low cut filters for each channel remove unwanted frequencies e.g.floor rumble,pape hiss etc.
※ Relay-controlled hard-bypass with an auto-bypass function during power failure(failsafe relay);
※ Shielded toroidal power transformer for ultra low-noise perfromance;
※ Extremely rugged all-metal chassis ensures long life even under the most demanding conditions. |
|
3. HA-231A [2006年9月12日]
 | | | Brand：Harman/Signal Processors/Equalizer |
Shipping Size：610×290×110
Net Weight：5.1Kg
Constant-Q, Low-cut Filter, EQ bypass, Sophisticated 30mm
Electronic Delay switches free the EQ from operating noise
+/- 12Db cut & boost, S/N ≥90Db, THD< 0.003%, Excellent Room Effect EQ
Wide dynamic range and suitable for vary applications.
Good consistence of Balanced Filters in each channel perform well for live application or studio production.
110V/220V Jumper |
|
4. HA-320 [2006年9月12日]
 | | | Brand：Harman/Signal Processors/Exciter |
Shipping Size：610×290×110
Net Weight：3Kg
Professional enhance for all multi-purpose sound reinforcement system.
ALC( automatic level control) circuitry applied ensures the best constant and default level.
Bass processor produces an incredible bass punch. With the “ Bass Mode”,
or “ Tight” sound can be gained.
Dual-mode function produces a strong and smooth Bass effect. While upgrading transparency of HF
6 controls for each channel. “ TUNE” alters the high pass filter cut-off and
determines which part of the audio spectrum is to be processed. Meanwhile, it
allows you to determine how much treble processing will be applied.
Release full sonic potential for your production.
110V/220V Jumper. |
|
5. HA-720 [2006年9月12日]
 | | | Brand：Harman/Signal Processors/Compressor/Limiter |
Shipping Size：610×290×110
Net Weight：3Kg
Designed for professional recording and sound reinforcement applications. Can be
ideally used with instruments like acoustic guitar, bass guitar and piano. Capable
for signal control, signal correction or creation.
Perfect combination of limiter and Noise Gate. State-of-the-art Noise Gate
Circuitry contributes to a smooth, perfect release time.
Stereo Link, Gate and limit/compress may be used simultaneously
Compress section has controls of Attack(0.2ms to 20ms), Release (50ms to 2.0s),
Threshold( +20dB to –35dB).
SIDE CHAIN input and output.
Smooth and unobtrusive functioning, low noise levels, long reliability, fool proof
operation, great sound, at-a glance metering.
110V/220V Jumper. |
|
6. HA-252 [2006年9月12日]
 | | | Brand：Harman/Signal Processors/Crossover |
Shipping Size：610×290×110
Net Weight：3.2Kg
Active Crossover-2 way stereo.
Continuos adjustable crossover frequencies.
Quality filter types: 18Db/oct Butterworth. This makes it easy to obtain a
phase & time coherent in Near Field situations.
Wide, flat Frequency response from 10Hz to 75Hz.
Ultra-low THD<0.004%. Excellent instantaneous response and dynamic range.
Ensures the elimination of shock may be caused when 10 is on /off
Best transient response guaranteed by a 117 dB Dynamic Range
What’s worth mentioning is the function of Mono-Channelized for LF. This creates a stronger punch.
110V/220V Jumper. |
|
7. Q-84 [2006年9月23日]
 | | | Brand：Harman/Signal Processors/Sequence Controller |
Shipping Size：590×710×180mm
Gross Weight：17Kg
Input Voltage：200-400V/350-450V
Output Voltage：200/240V
Max Output Current： CH1, 2, 3: 3×3×10A ，CH4-CH8: 5×32A
Phase Relation ：A; CH1, 2, 3 ，B; CH4, 5 ，C; CH6, 7, 8
Total Output Current：3×63A
Output Channel：8
Delay Caused By Output：8×1s
Power Consumption：≤30W |
|
8. Q-83 [2006年9月23日]
 | | | Brand：Harman/Signal Processors/Sequence Controller |
Shipping Size：590×710×180mm
Gross Weight：16Kg
Input Voltage：200-400V/350-450V
Output Voltage：200/240V
Max Output Current： CH1, 2, 3: 3×3×10A ，CH4-CH8: 5×32A
Phase Relation ：A; CH1, 2, 3 ，B; CH4, 5 ，C; CH6, 7, 8
Total Output Current：3×63A
Output Channel：8
Delay Caused By Output：8×1s
Power Consumption：≤30W |
|
9. Q-82 [2006年9月23日]
 | | | Brand：Harman/Signal Processors/Sequence Controller |
Shipping Size：610×510×170mm
Gross Weight：12Kg
Input Voltage：200-400V/350-450V
Output Voltage：200V/240V
Max Output Current：CH1\2\3: 5×10A，CH4\5: 2×15A，CH6\7\8: 3×32A
Phase Relation：A;CH1, 2, 3，B;CH4, 5，C;CH6, 7, 8
Total Output Current：3×32A
Output Channel：8
Delay Caused By Output：8×1s
Power Consumption：≤30W |
|
10. Q-81 [2006年9月23日]
 | | | Brand：Harman/Signal Processors/Sequence Controller |
Shipping Size：610×510×170mm
Gross Weight：11Kg
Input Voltage：200-400V/350-450V
Output Voltage：200V/240V
Max Output Current：CH1\2\3: 5×10A，CH4\5: 2×15A，CH6\7\8: 3×32A
Phase Relation：A;CH1, 2, 3，B;CH4, 5，C;CH6, 7, 8
Total Output Current：3×32A
Output Channel：8
Delay Caused By Output：8×1s
Power Consumption：≤30W |
|
11. Q-80 [2006年9月23日]
 | | | Brand：Harman/Signal Processors/Sequence Controller |
Shipping Size：430×520×180mm
Gross Weight：9Kg
|
|
12. HA-082 [2006年9月12日]
 | | | Brand：Harman/Signal Processors/Sequence Controller |
Shipping Size： 610×290×110
Net Weight：4.7Kg
Power sequencers accommodate those equipment must be powered on and off in stages
rather than simultaneously, either to avoid speaker damage from loud turn-on
transients or excessive inrush currents.
8 sockets for connection
Power-off reverses sequence.
LEDS indicate the powered outlets.
Max rated sum-up power 30mp and 20Amp (max) for each other.
110V/220V Jumper |
|

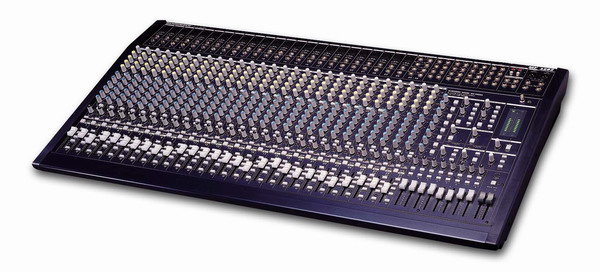

13. MF-3282 [2006年9月12日]
 | | | Brand：Harman/Mixer/PMF Series |
※ Ultra-low noise design
※ Extremely high headroom-offering more dynamic range
※ Ultra-low noise discrete microphone pre-amps with 48V phantom power and switchable low-cut filter
※ Ultra-musical 3-band EQ parametric mid band offering an extremely wide swept range from 0.1 to 8KHz
※ 4 multifunctional stereo aux return with multiple routing options
※ Channel,group and mix insert points
※ High-precision logarithmic taper faders and sealed potentiometers,comparable to those found on large-frame consoles,ensure durability and long life
※ Balanced inputs and outputs
※ Solo-in-place and Pre-Fader-Listen functions throughout the whole board
※ 2 track inputs assignable to main mix or monitor/headphone output
※ Full featured talkback section and separate headphone mix with multiple routing options
※ State-of-the-art 4580ICs and high-quality components guarantee crystal-clear audio performance and excellent moise figures
※ Exceptionally rugged construction ensures long life even under the most demanding conditions
※ External power supply design provides hum-free audio superior transient response |
|

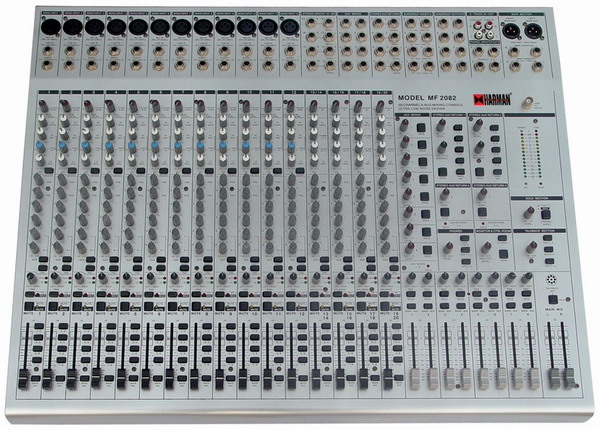

14. MF-2082 [2006年9月23日]
 | | | Brand：Harman/Mixer/PMF Series |
Shipping Size：1180×200×600mm
Gross Weight：20Kg
※ Ultra-low noise design
※ Extremely high headroom-offering more dynamic range
※ Ultra-low noise discrete microphone pre-amps with 48V phantom power and switchable low-cut filter
※ Ultra-musical 3-band EQ parametric mid band offering an extremely wide swept range from 0.1 to 8KHz
※ 4 multifunctional stereo aux return with multiple routing options
※ Channel,group and mix insert points
※ High-precision logarithmic taper faders and sealed potentiometers,comparable to those found on large-frame consoles,ensure durability and long life
※ Balanced inputs and outputs
※ Solo-in-place and Pre-Fader-Listen functions throughout the whole board
※ 2 track inputs assignable to main mix or monitor/headphone output
※ Full featured talkback section and separate headphone mix with multiple routing options
※ State-of-the-art 4580ICs and high-quality components guarantee crystal-clear audio performance and excellent moise figures
※ Exceptionally rugged construction ensures long life even under the most demanding conditions
※ External power supply design provides hum-free audio superior transient response |
|

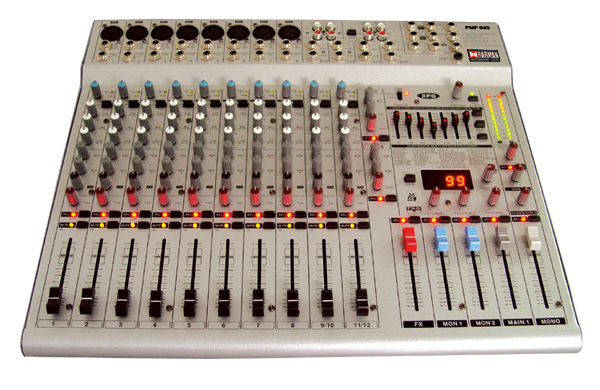

15. PMF-840 [2006年9月12日]
 | | | Brand：Harman/Mixer/PMF Series |
Shipping Size：92×413×370mm
Net Weight：4.5Kg
※ "Invisible"Mic preamps,insert line input and 48Vphantom power supply;
※ 8 mono line input and 4 stereo line input,2 group output;
※ Extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels;
※ 3 band EQ on all stereo channels;
※ Integrated 24-bit digital stereo FX Processor with 99 great-sounding VIRTUALIZER presets;
※ Internal switch mode power supply. |
|

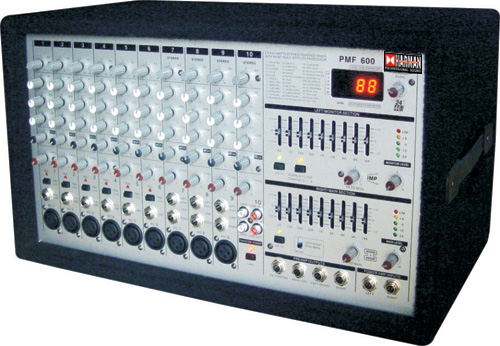

16. PMF-600 [2006年9月12日]
 | | | Brand：Harman/Mixer/PMF Series |
Shipping Size：280×460×270mm
Net Weight：14.5Kg
※"Invisible" Mic preamps,insert line input and 48V phantom power supply;
※6 mono line input and 4 stereo channels:3 with the same ULN mic/line preamp;
※Built-in 2×400-Watt power amplifier;
※You can select stereo(main left/right loudspeaks) or dual channel(main loundspeaker/monitor loundspeaker)to work at your view;
※2 amplifier input,3 loudspeaker output,(left,right,bridge mono channel);
※Integrated 24-bit digital stereo FX Processor with 99 great-sounding VIRTUALIZER presets. |
|
17. JF-844 [2006年9月12日]
 | | | Brand：Harman/Mixer/JF Series |
Shipping Size：119×418×418mm
Net Weight：5.8Kg
※ "Invisible" Mic preamps,insert line input and 48V phantom power supply;
※ 10 mono line input and 4 stereo line input,4 group output,4 Aux Send and 2 stereo aux send channel;
※ Extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels;
※ 4 band EQ on all stereo chnnels;
※ Integrated 24-bit digital stereo FX Processor with 99 great-sounding WIRTUALIZER presets;
※ Internal switch mode power supply. |
|
18. JF-842 [2006年9月12日]
 | | | Brand：Harman/Mixer/JF Series |
Shipping Size：92×413×370mm
Net Weight：4.8Kg
※ "Invisible" Mic preamps,insert line input and 48V phantom power supply;
※ 8 mono line input and 4 stereo line input,2 group output,3 Aux send and 2 stereo Aux send channel;
※ Extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels;
※ 4 band EQ on all stereo channels;
※ Integrated 24-bit digital stereo FX Processor with 99 great-sounding VIRTUALIZER presdts;
※ Internal switch mode power supply. |
|
19. JF-666 [2006年9月12日]
 | | | Brand：Harman/Mixer/JF Series |
Shipping Size：92×403×370mm
Net Weight：4.8Kg
※ "Invisible" Mic preamps,insert line input and 48V phantom power supply;
※ 6 mono line input and 4 stereo line input,2 group output,3 Aux Send and 2 Stereo Aux Send channel;
※ Extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels;
※ 4 band EQ on all stereo chnnels;
※ Integrated 24-bit digital stereo FX Processor with 99 great-sounding VIRTUALIZER presets;
※ Internal switch mode power supply;
※ 9 band stereo graphic EQ. |
|
20. JF-422 [2006年9月12日]
 | | | Brand：Harman/Mixer/JF Series |
Shipping Size：82×250×322mm
Net Weight：2.8Kg
※ "Invisible" Mic preamps,insert line input and 48V phantom power supply;
※ 4 mono line input and 2 stereo line input,2 group output,2 Aux send and 2 stereo Aux send channel;
※ Extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels.
|
|
|
| |
|
|
|
|
