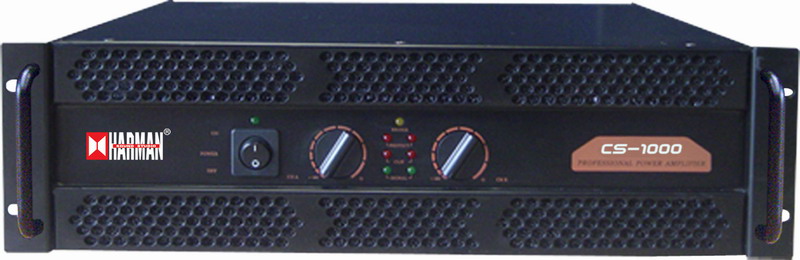

 | | | Brand：Harman/Amplifier/CS Series |
Power Output（Max）8Ω：700W
Power Output（Max）4Ω：1200W
Bridge 8Ω：2100W
Input Impedance：20KΩ-10KΩ
Frequency Response：20Hz-20KHz
THD：≤0.5%
S/N：≥95dB
IMD：≤0.05%
Damping Factor：＞400
DC Protection：Have
Temperature Protection：Relay Breaks at 95℃
Input Sensitivity：1V
Net Weight：27Kg
Dimension（HWD）：130×482×450mm
※Use individual channel to improve the excellent separability of sound.
※Suitable for a wide variety of environment and not to be any restricted, such as stadium, church, opera house, classroom, theater, amusement park, broadcasting, television and industry field etc.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start when TURN ON and TURN OFF.
※Unique and complete protection against shorted, overload, DC, soft start and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
 | | | Brand：Harman/Amplifier/CS Series |
Power Output（Max）8Ω：500W
Power Output（Max）4Ω：800W
Bridge 8Ω：1500W
Input Impedance：20KΩ-10KΩ
Frequency Response：20Hz-20KHz
THD：≤0.5%
S/N：≥95dB
IMD：≤0.05%
Damping Factor：＞400
DC Protection：Have
Temperature Protection：Relay Breaks at 95℃
Input Sensitivity：1V
Net Weight：27Kg
Dimension（HWD）：130×482×450mm
※Use individual channel to improve the excellent separability of sound.
※Suitable for a wide variety of environment and not to be any restricted, such as stadium, church, opera house, classroom, theater, amusement park, broadcasting, television and industry field etc.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start when TURN ON and TURN OFF.
※Unique and complete protection against shorted, overload, DC, soft start and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
 | | | Brand：Harman/Amplifier/CS Series |
Power Output（Max）8Ω：400W
Power Output（Max）4Ω：600W
Bridge 8Ω：1200W
Input Impedance：20KΩ-10KΩ
Frequency Response：20Hz-20KHz
THD：≤0.5%
S/N：≥95dB
IMD：≤0.05%
Damping Factor：＞400
DC Protection：Have
Temperature Protection：Relay Breaks at 95℃
Input Sensitivity：1V
Net Weight：27Kg
Dimension（HWD）：130×482×450mm
※Use individual channel to improve the excellent separability of sound.
※Suitable for a wide variety of environment and not to be any restricted, such as stadium, church, opera house, classroom, theater, amusement park, broadcasting, television and industry field etc.
※Ultra low noise and excellent high frequency filter supply great signal-to-noise ratio
※Delay circuit for soft start when TURN ON and TURN OFF.
※Unique and complete protection against shorted, overload, DC, soft start and overheating etc.
※Low inrush current advance the appliance to operate efficiently. |
|
|
